Category : Integrated Circuits (ICs) Power Management (PMIC) AC DC Converters, Offline Switches
Control Features : Soft Start
Product Status : Obsolete
Voltage - Start Up : 16.5 V
Mounting Type : Surface Mount
Frequency - Switching : 10kHz ~ 1MHz
Package : Tube
Series : -
Fault Protection : -
Output Isolation : Non-Isolated
Supplier Device Package : 20-PLCC (9x9)
Mfr : Texas Instruments
Voltage - Breakdown : -
Voltage - Supply (Vcc/Vdd) : 10.5V ~ 22V
Package / Case : 20-LCC (J-Lead)
Duty Cycle : -
Operating Temperature : -25°C ~ 85°C (TA)
Internal Switch(s) : Yes
Base Product Number : UC2861
Topology : Full-Bridge, Half-Bridge, Push-Pull
Description : IC OFFLINE SW MULT TOP 20PLCC
![]() |

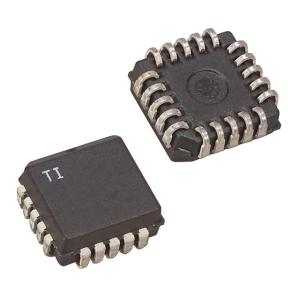

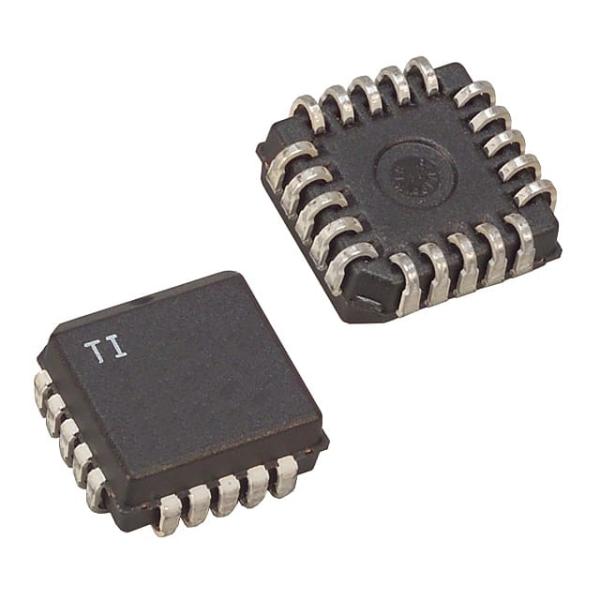

UC2861Q Images |
